Specs

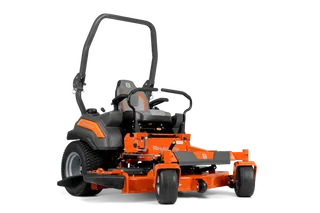

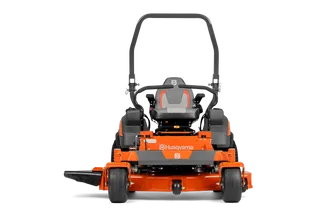

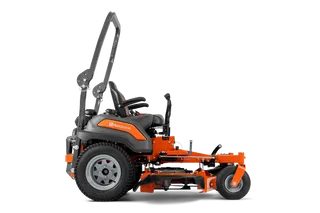

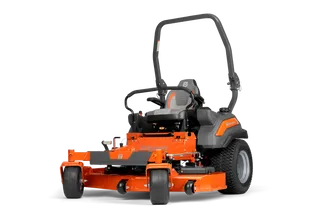

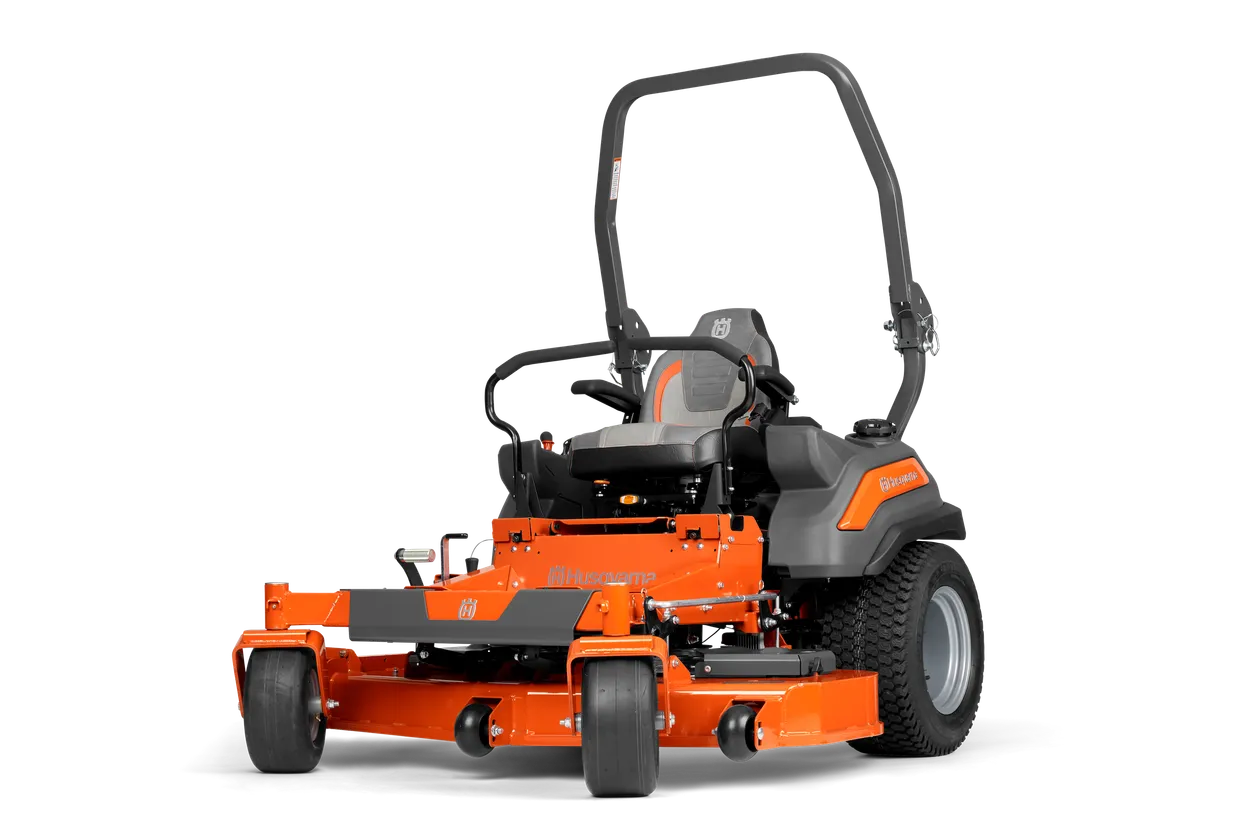

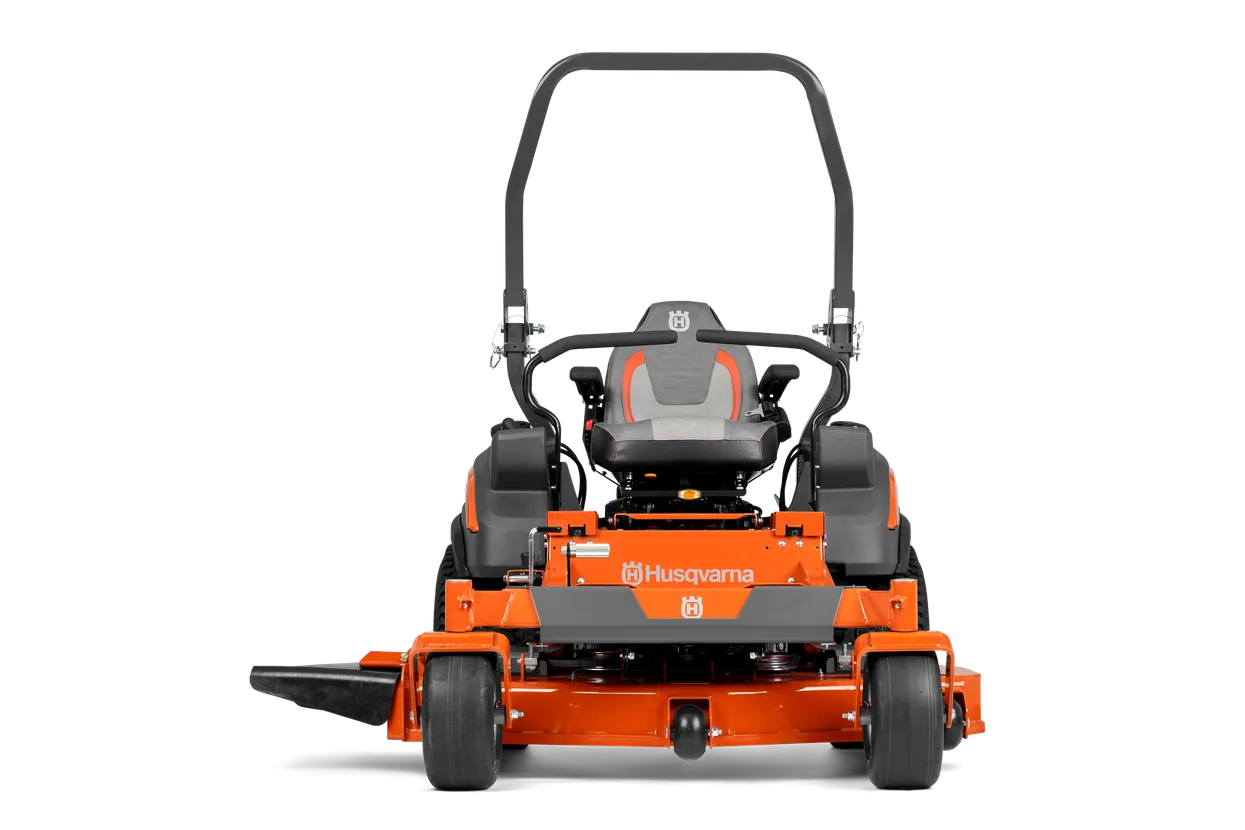

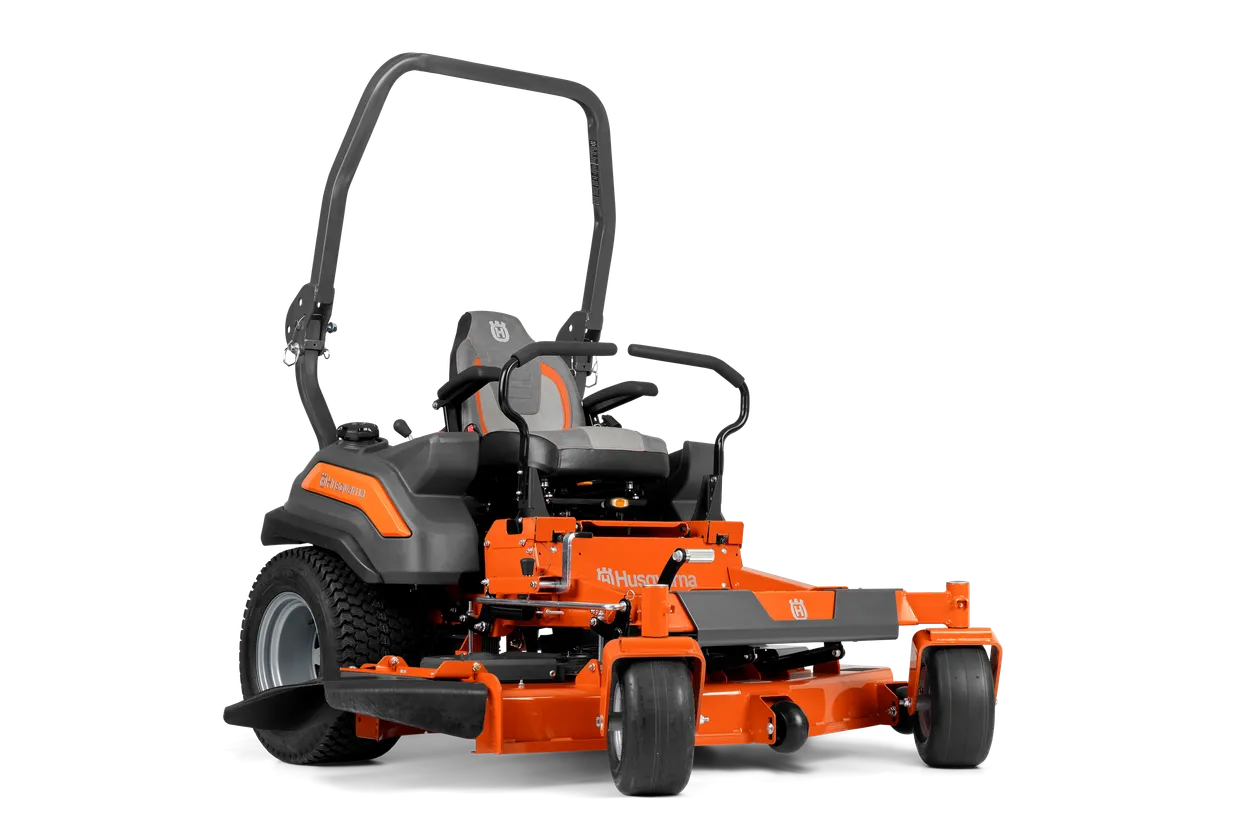

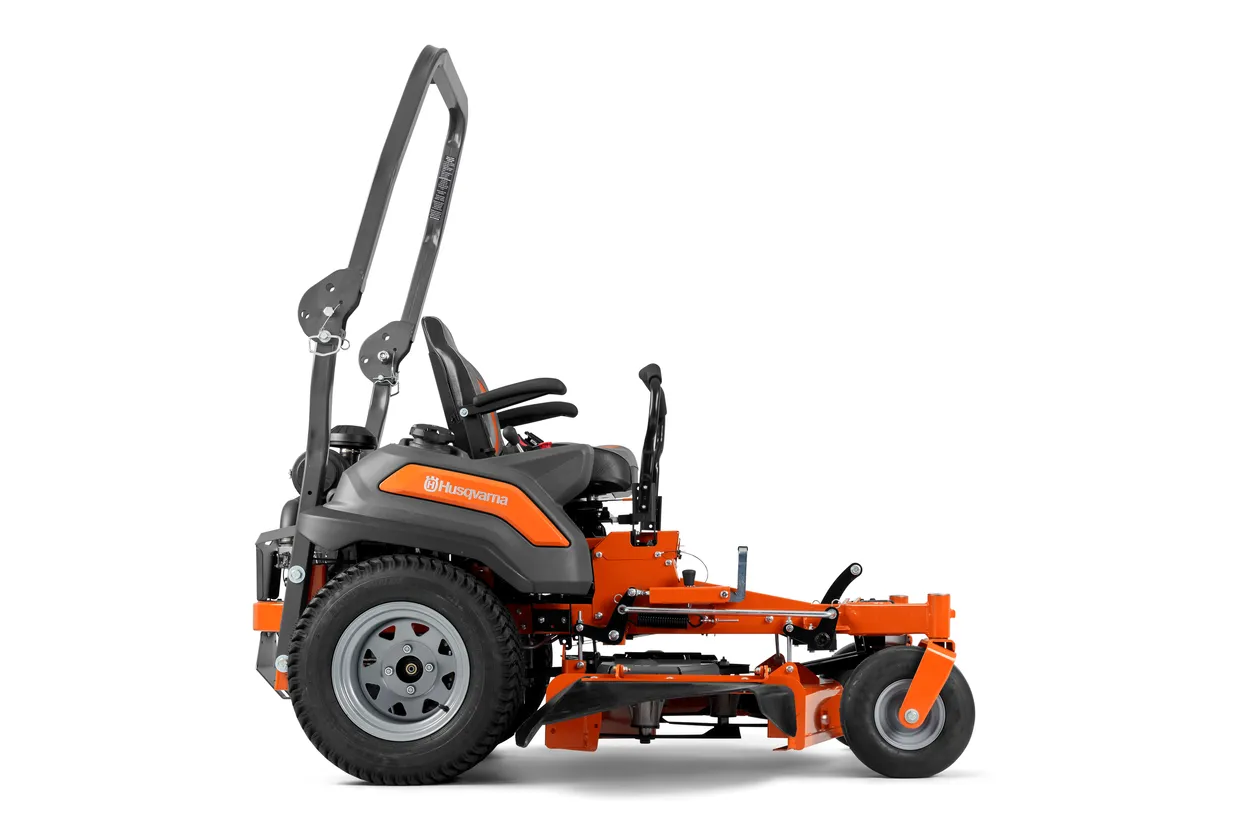

Z454XS Professional Zero Turn Mower 970 49 71‑02 | |
|---|---|
Capacity | |
Cutting width | 54 in |
Speed forward min | 0 mph |
Speed forward max | 11 mph |
Z454XS Professional Zero Turn Mower 970 49 71‑02 | |
|---|---|
Emission | |
Exhaust emissions (COâ‚‚ EU V)2 | 953.5 g/kWh |
Z454XS Professional Zero Turn Mower 970 49 71‑02 | |
|---|---|
Cutting deck | |
Cutting Methods (filter) | Side discharge |
Cutting methods | Collect/Mulch/Side discharge |
Deck thickness | 10 gauge |
Deck Wash Port | No |
Greasable mandrels | Yes |
Nose roller | No |
Cutting deck surface treatment | Powder coated |
Spindle/mandrel type | Aluminium, commercial |
Deck lifting system | Manual, foot activated |
Cutting height steps | 13 |
Cutting deck type | 10-gauge fabricated |
Anti-scalp wheels | 4 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting height, min (approximate) | 1.5 in |
Cutting height, max (approximate) | 4.5 in |
Z454XS Professional Zero Turn Mower 970 49 71‑02 | |
|---|---|
Dimensions | |
Weight | 961 lbs |
Base machine, height (ROPS down) | 49.75 in |
Base machine, height (ROPS up) | 64.25 in |
Base machine, height | 49.75 in |
Base machine, length | 76.5 in |
Base machine, width (chute down) | 68.25 in |
Base machine, width (chute up) | 55 in |
Z454XS Professional Zero Turn Mower 970 49 71‑02 | |
|---|---|
Drive system | |
Transmission Brand | Parker |
Transmission type | Hydrostatic |
Z454XS Professional Zero Turn Mower 970 49 71‑02 | |
|---|---|
Engine | |
Engine name | FX Series V-Twin |
Engine brand | Kawasaki |
Engine Power (As rated by the engine manufacturer)1 | 23.5 hp |
Cylinder displacement | 44.3 cu.inch |
Fuel tank volume | 45.4 l |
Air filter type | Heavy-Duty Canister Style |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Full pressure with oil filter |
Fuel tank location | Side (Dual) |
Fuel tank volume (with reserve) | 12 gal (US) |
Motor/engine manufacturer | Kawasaki |
Oil filter | Yes |
Z454XS Professional Zero Turn Mower 970 49 71‑02 | |
|---|---|
Equipment | |
Seat type | Professional, suspension |
Cup holder | Yes |
Hinged armrests | Standard |
Hour meter type | Yes |
ROPS | Standard (foldable) |
Seat back height | High |
Seat material | Vinyl |
Z454XS Professional Zero Turn Mower 970 49 71‑02 | |
|---|---|
Control | |
Connectivity | Not applicable |
