Specs

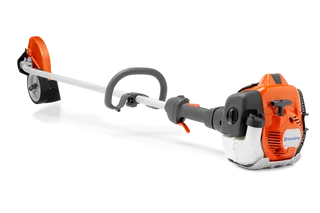

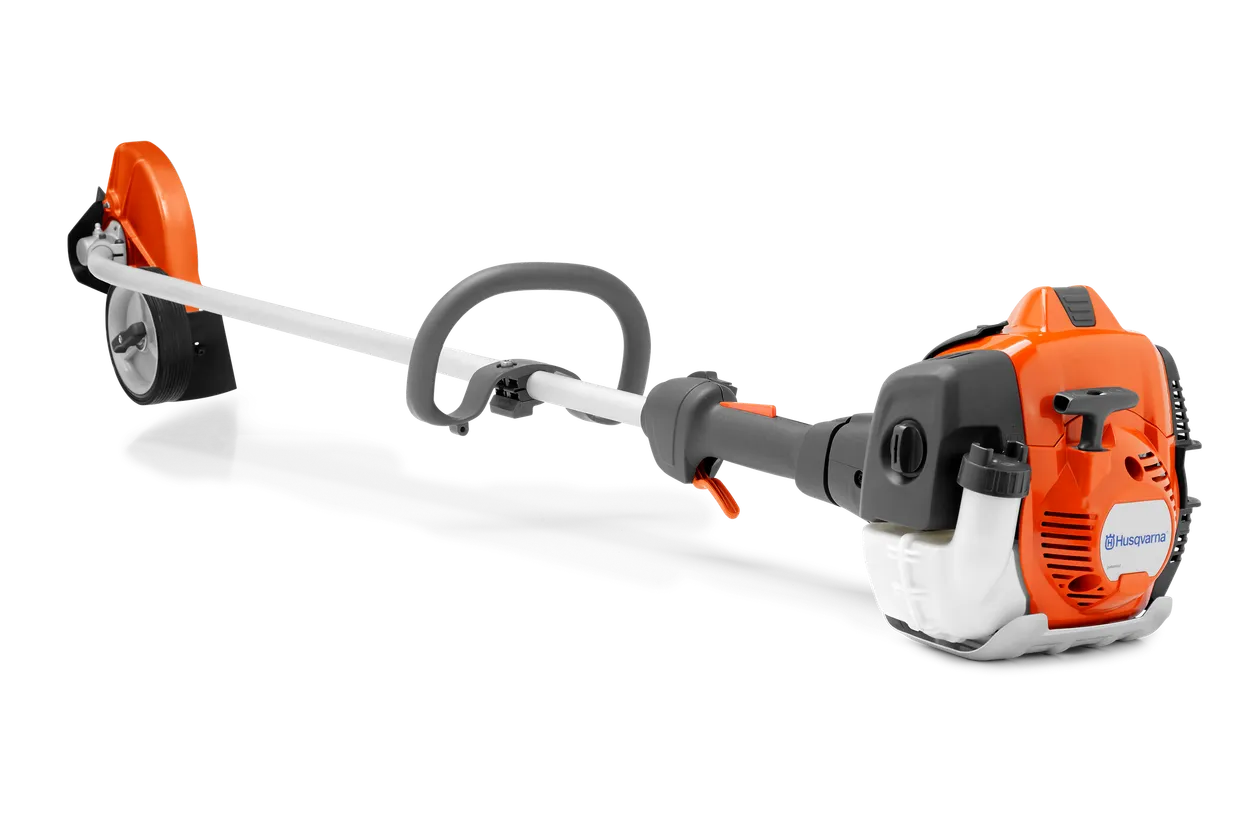

525ECS EDGER US/CA SKU: 967 17 60‑01 | ||
|---|---|---|
| Dimensions | 525ECS EDGER US/CA SKU: 967 17 60‑01 | Lowe's Trimmer Bay SKU: 967 17 60‑02 |
Tube diameter | 0.9 in | 0.9 in |
Weight (excl. cutting equipment) | 13.9 lbs | 13.9 lbs |
Tube length | 59.055 in | 59.055 in |
Product size height | 11.8 in | 11.8 in |
Product size length | 68.9 in | 68.9 in |
Product size width | 11.1 in | 11.1 in |
| Engine | ||
Cylinder displacement | 1.55 cu.inch | 1.55 cu.inch |
Output shaft power1 | 1.34 hp | 1.34 hp |
Fuel tank volume | 17.3 fl oz | 17.3 fl oz |
Fuel consumption | 600 g/kWh | 600 g/kWh |
Maximum power speed | 8,500 rpm | 8,500 rpm |
Idling speed | 3,000 rpm | 3,000 rpm |
Maximum rpm output shaft | 7,600 rpm | 7,600 rpm |
| Equipment | ||
Grass blade | Edger blade 195-2 | Edger blade 195-2 |
Harness | Not included | Not included |
| Lubricant | ||
Lubricant type (bevel gear) | Mineral grease | Mineral grease |
| Sound and noise | ||
Sound pressure level at operators ear | 94 dB(A) | 94 dB(A) |
| Transmission | ||
Gear ratio | 1.25 | 1.25 |
Drive gear angle | 60 ° | 60 ° |
| Vibration | ||
Equivalent vibration level (ahv, eq) front handle | 4.2 m/s² | 4.2 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 9.1 m/s² | 9.1 m/s² |
