Specs

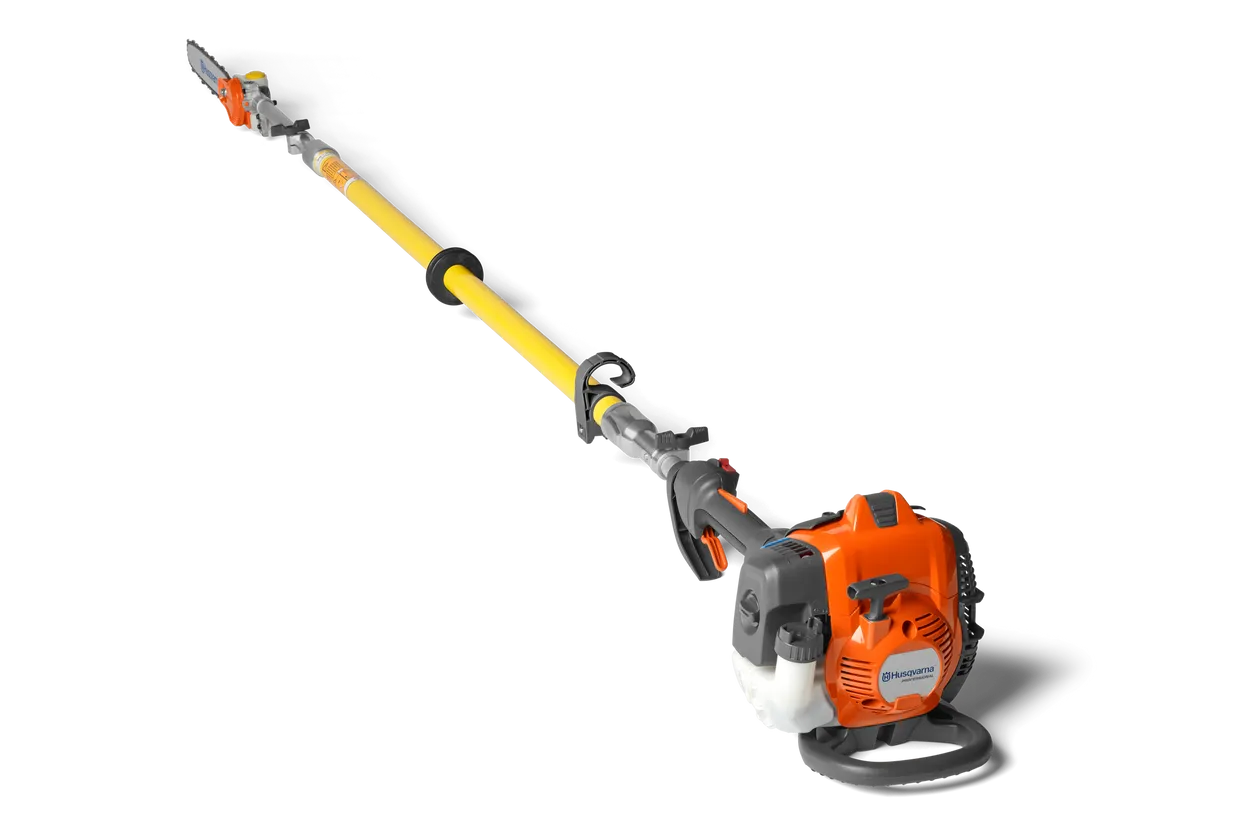

525DEPS MADSAW DIELECTRIC POLE SAW. 970 47 84‑01 | |
|---|---|
Engine | |
Cylinder displacement | 25.4 cm³ |
Output shaft power1 | 1.36 hp |
Fuel tank volume | 17.25 fl oz |
Fuel Consumption | 395 g/kWh |
Clutch engagement speed (±120) | 3,850 rpm |
Idling speed | 3,000 rpm |
Maximum power speed | 8,500 rpm |
Spark Plug | NGK BPMR8Y |
Torque, max. | 1.2 Nm |
Torque, max. at rpm | 6,000 rpm |
525DEPS MADSAW DIELECTRIC POLE SAW. 970 47 84‑01 | |
|---|---|
Control | |
Connectivity | Not applicable |
525DEPS MADSAW DIELECTRIC POLE SAW. 970 47 84‑01 | |
|---|---|
Equipment | |
Pitch | 3/8" mini |
Bar length (inch) | 12 in |
Nose type | Sprocket nose |
Chain type | S93G |
Harness | Single harness |
525DEPS MADSAW DIELECTRIC POLE SAW. 970 47 84‑01 | |
|---|---|
Dimensions | |
Weight (excl. cutting equipment) | 16.4 lbs |
Full length, including cutting equipment | 150 |
Length, extended, including cutting equipment | 150 in |
525DEPS MADSAW DIELECTRIC POLE SAW. 970 47 84‑01 | |
|---|---|
Sound and noise | |
Sound pressure level at operators ear (LpA) | 91 dB(A) |
Sound power level, guaranteed (LWA) | 111 dB(A) |
Sound power level, measured | 107 dB(A) |
525DEPS MADSAW DIELECTRIC POLE SAW. 970 47 84‑01 | |
|---|---|
Lubricant | |
Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
